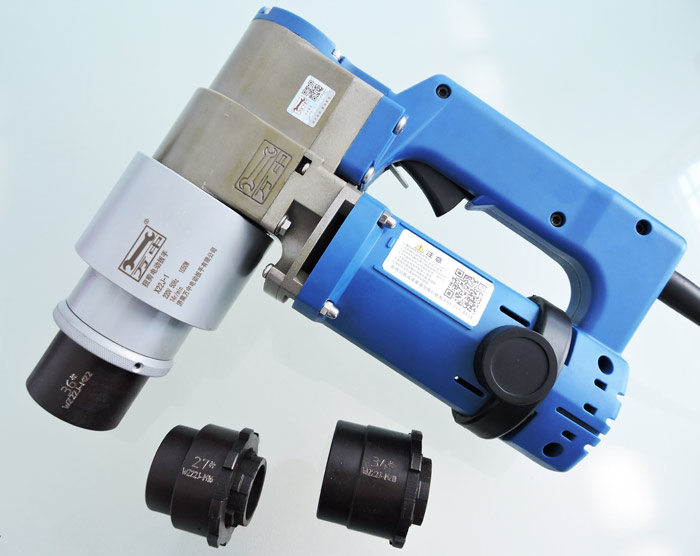

Model: x24j-3

额定电压：220V

Rated voltage: 220V

额定电流：5.0A

Rated current: 5.0A

额定功率：1050W

Rated power: 1050W

大扭矩：1250N/m

Large torque: 1250n/m

空载转速：10r/m

No load speed: 10r/m

净重：6.2kg

Net weight: 6.2kg

适用螺栓：M16 M20 M22 M24

Applicable bolt: M16 M20 M22 M24

扭剪扳手主要是终紧扭剪型高强螺栓的，它的目的就是把扭剪型高强螺栓的梅花头打断即可。工作诗扳手头对准螺栓头，扣动开关即可开始工作，几秒后，螺栓梅花头将被扭断，然后抽出扳手扣动将梅花头弹出，即结束工作。

The torsional shear wrench is mainly used to finally tighten the torsional shear type high-strength bolt. Its purpose is to break the plum blossom head of the torsional shear type high-strength bolt. Align the wrench head with the bolt head, turn the switch to start working. After a few seconds, the bolt Torx head will be broken, and then pull out the wrench to snap the Torx head out, that is, end the work.

必威西汉姆联官网g1线路主要应用于钢结构安装行业，专门安装钢结构高强螺栓，高强度螺栓是用来连接钢结构接点的，通常是用螺栓群的方式出现。

Electric wrenches are mainly used in the steel structure installation industry to install high-strength bolts of steel structures. High strength bolts are used to connect steel structure joints, usually in the form of bolt groups.

冲击必威西汉姆联官网g1线路主要是初紧螺栓的，它的使用很简单，就是对准螺栓扳动电源开关就行。电动扭剪扳手主要是终紧扭剪型高强螺栓的，它的使用就是对准螺栓扳动电源开关，直到把扭剪型

The impact electric wrench is mainly used to initially tighten the bolt. Its use is very simple, that is, just aim at the bolt and pull the power switch. The electric torsional shear wrench is mainly used to finally tighten the torsional shear type high-strength bolt. Its use is to pull the power switch against the bolt until the torsional shear type

高强螺栓的梅花头打断为止。电动定扭矩扳手既可初紧又可终紧，它的使用是先调节扭矩，再紧固螺栓。电动转角扳手主要也属于定扭矩扳手的一种，它的使用是先调节旋转度数，再紧固螺栓。电动角向扳手是一种专门紧固钢架夹角部位螺栓的必威西汉姆联官网g1线路，它的使用和电动扭剪扳手原理一样。

Until the plum blossom head of high-strength bolt is broken. The electric constant torque wrench can be used for initial tightening and final tightening. Its use is to adjust the torque first, and then tighten the bolts. The electric angle wrench mainly belongs to a kind of constant torque wrench. Its use is to adjust the rotation first, and then tighten the bolts. The electric angle wrench is an electric wrench specially used to fasten the bolts at the included angle of the steel frame. Its use principle is the same as that of the electric torsion shear wrench.

以上就是为大家介绍的扭剪扳手的详细的介绍,希望对您有所帮助.如果您有什么疑问的话,欢迎联系我们.我们将以的态度,为您提供服务.

The above is the torsional shear wrench introduced to you I hope it will be helpful to you If you have any questions, please contact us We will provide you with professional service
