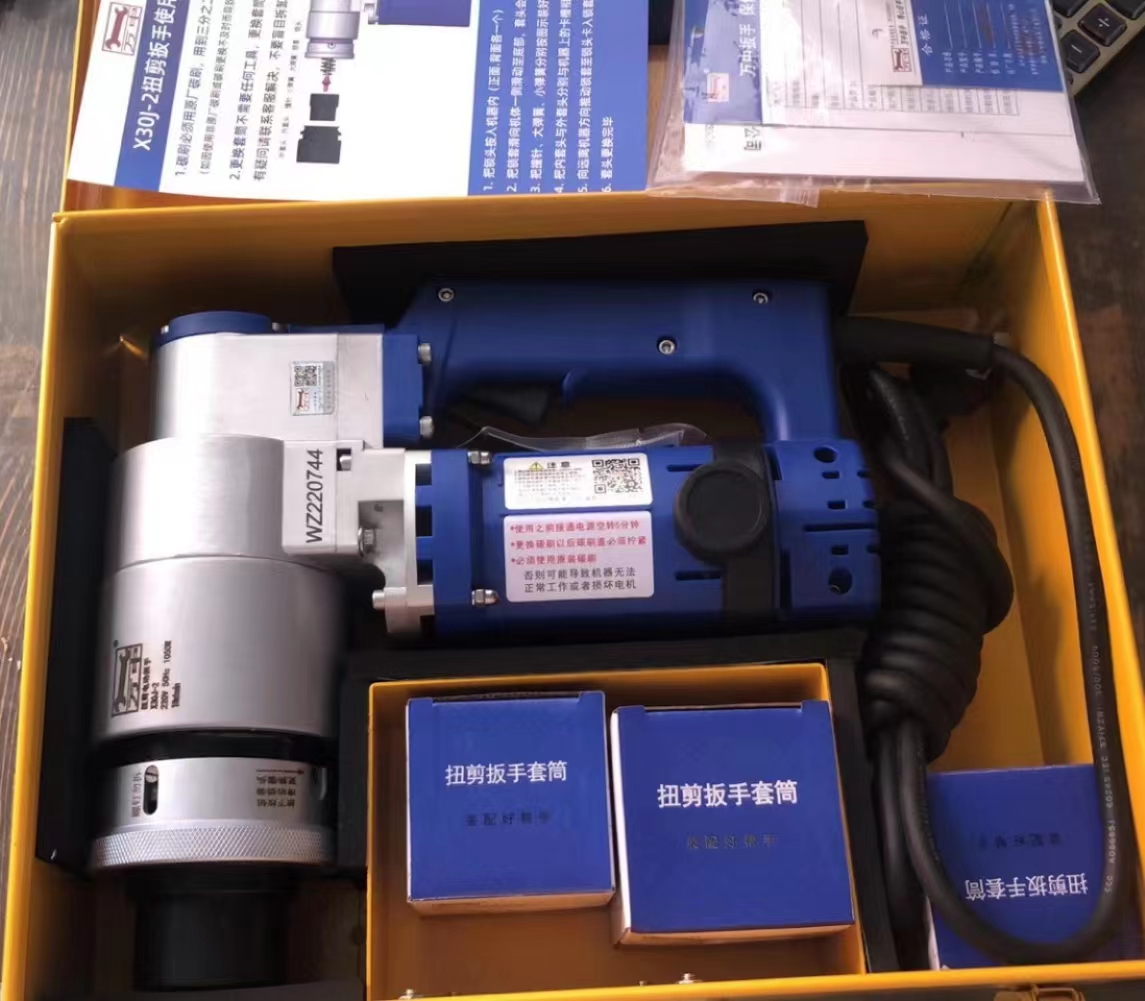

The electric torque shear wrench is specially used to fasten high-strength torque shear bolts, and after the fastening is completed, keep the cut torx head inside the sleeve, and then pull the trigger to eject the torx head. The power is 220V or 110V AC power supply. Compared with the traditional hexagon bolt, the torque shear bolt and the electric torque shear wrench are convenient and fast for construction, accurate torque control, and convenient for inspection.

扭剪型必威西汉姆联官网g1线路使用：

Use of twist shear type electric wrench:

1、用扳手内套筒完全插进螺栓尾部梅花头部分，同时向前推动扳手，内套筒后退，使外套筒完全套住螺母，若不能完全套住螺母请左右转动扳手并向前用力。

1. Insert the inner sleeve of the wrench fully into the box head at the end of the bolt, push the wrench forward at the same time, and the inner sleeve moves backward to make the outer sleeve completely cover the nut. If the nut cannot be completely covered, turn the wrench left and right and force forward.

2、扣动扳手开关，使其旋转。

2. Turn the wrench switch to rotate it.

3、拧断梅花头，紧固结束，弹出梅花头即可。

3. Screw off the plum blossom head, fasten it, and pop it out.

扭剪型必威西汉姆联官网g1线路注意事项：

Precautions for twist shear type electric wrench:

1、不可在雨天或潮湿的环境中使用本机，以免漏电。

1. Do not use the machine in rainy days or humid environments to avoid electric leakage.

2、使用本机高空作业时，请系好安全带，在操作点下方严禁站人及放置贵重物品。

2. When using this machine to work at heights, please fasten your safety belt. It is strictly forbidden to stand under the operation point and place valuables.

3、使用本机时需远离易燃易爆物品。

3. Keep away from inflammables and explosives when using this machine.

4、严禁破坏电源线及使用电源线拖拉本机。

4. It is forbidden to damage the power cord or use the power cord to drag the machine.

5、检查及维修本机时应先切断电源。

5. Cut off the power supply before checking and repairing the machine.

扭剪型必威西汉姆联官网g1线路检查与维修：

Inspection and maintenance of torsional shear type electric wrench:

1、定期检查碳刷，建议碳刷小于7mm时进行更换。

1. Check the carbon brush regularly. It is recommended to replace the carbon brush when it is less than 7mm.

2、保持内外套筒清洁不得混入杂物。用完本机后应擦拭干净存放于干燥处。

2. Keep the inner and outer sleeves clean and free of sundries. After using the machine, it should be wiped clean and stored in a dry place.

3、使用前应检查各紧固螺钉是否松动，如果松动应及时紧固，并试转声音是否正常，如果出现异常声音应及时检修。

3. Before use, check whether the fastening screws are loose. If they are loose, tighten them in time, and check whether the sound of trial run is normal. If there is abnormal sound, repair them in time.

以上就是为大家介绍的有关扭剪扳手的详细的介绍,希望对您有所帮助.如果您有什么疑问的话,欢迎联系我们.我们将以的态度,为您提供服务

The above is a detailed introduction to the torque shear wrench. I hope it will be helpful to you. If you have any questions, please contact us. We will provide you with professional services
