High strength bolts of steel structures can be divided into friction type connections and pressure type connections from the mechanical characteristics. The connection surface of high-strength bolt pressure bearing connection only needs rust prevention treatment. However, the friction type of high-strength bolts has the advantages of tight connection, good stress, fatigue resistance and suitable for bearing dynamic loads. However, the connection surface needs to be treated with friction surface, which is generally treated by sandblasting and applying inorganic zinc rich paint after sandblasting.

钢结构高强度螺栓由于螺栓构造和施工方法不一样，又可以分为大六角头高强度螺栓和扭剪型高强度螺栓两类。大六角头型和普通六角头粗制螺栓相同，扭剪型的螺栓头与铆钉头相仿，但是扭剪型的螺纹端头设置了一个梅花卡头和一个能够控制紧固扭矩的环形槽沟，这个差别需要注意。

Due to different bolt structures and construction methods, steel structure high-strength bolts can be divided into two types: large hexagon head high-strength bolts and torsion shear high-strength bolts. The large hexagon head type is the same as the ordinary hexagon head rough bolt. The bolt head of the torsion shear type is similar to the rivet head, but the thread end of the torsion shear type is provided with a plum blossom chuck and an annular groove that can control the tightening torque. This difference needs attention.

—个螺栓连接副包括螺栓、螺母、垫圈三部分。高强度螺栓的构造要求和排列要求，与普通螺栓的构造及排列要求相同。然后一定要符合规范使用，大六角头只能使用8.8级高强螺栓，扭剪型高强度螺栓只能使用10.9级高强度螺栓。

A bolt connection pair includes bolts, nuts and washers. The structural requirements and arrangement requirements of high-strength bolts are the same as those of ordinary bolts. Then it must be used in accordance with the specifications. Only grade 8.8 high-strength bolts can be used for large hexagon head, and only grade 10.9 high-strength bolts can be used for torsional shear high-strength bolts.

钢结构高强度螺栓的预拉力是通过扭紧螺母实现的。通常使用扭矩法、转角法或扭掉螺栓尾部梅花卡头法来控制预拉力。

The pretension of steel structure high-strength bolts is realized by tightening nuts. Generally, torque method, angle method or quincunx clamp method at the end of the bolt are used to control the pretension.

目前有一种显示扭矩的特制扳手，通过测定的扭矩和螺栓拉力之间的关系，再来施加扭矩达到必要的超张拉值。

At present, there is a special wrench that displays torque. By measuring the relationship between torque and bolt tension, torque is applied to achieve the necessary overstretch value.

转角法转角法又分为二个步骤，一是初拧，二是终拧。简单来说，初拧一般是工人使用普通扳手使得被连接构件相互紧密贴合，而终拧则是以初拧的贴紧位置作为起点，根据螺栓直径和板叠厚度来确定的终拧角度，用强有力的扳手旋转螺母，拧至预定角度值时，螺栓的拉力就可以达到要求的预拉力数值了。为了防止高强度螺栓受外部环境的影响，使扭矩系数发生变化，故一般初拧、终拧应该在同内完成。

Turning angle method turning angle method is divided into two steps, one is initial screwing and the other is final screwing. To put it simply, the initial tightening is generally that workers use ordinary wrenches to make the connected members closely fit each other, while the final tightening is that the final tightening angle is determined according to the bolt diameter and plate stack thickness with the initial tightening position as the starting point. When the nut is rotated with a powerful wrench to a predetermined angle, the bolt tension can reach the required pretension value. In order to prevent the torque coefficient of high-strength bolts from changing due to the influence of external environment, the initial tightening and final tightening should be completed in the same day.

扭剪型扭剪型高强度螺栓的受力特征与一般高强度螺栓相同，只是施加预拉力的方法为用拧断螺栓梅花头切口处截面来控制预拉力数值。

The mechanical characteristics of torsional shear high-strength bolts are the same as those of general high-strength bolts, except that the method of applying pretension is to control the pretension value by breaking the section at the notch of the bolt's quincunx head.

摩擦型高强度螺栓连接完全依靠被连接构件间的摩擦阻力传力，而摩擦阻力的大小除了螺栓的预拉力外，与被连接构件材料及其接触面的表面处理所确定的摩擦面抗滑移系数。

Friction type high-strength bolt connection completely relies on the frictional resistance between the connected members to transmit force. In addition to the pretension of the bolts, the magnitude of the frictional resistance is related to the anti slip coefficient of the friction surface determined by the surface treatment of the materials of the connected members and their contact surfaces.

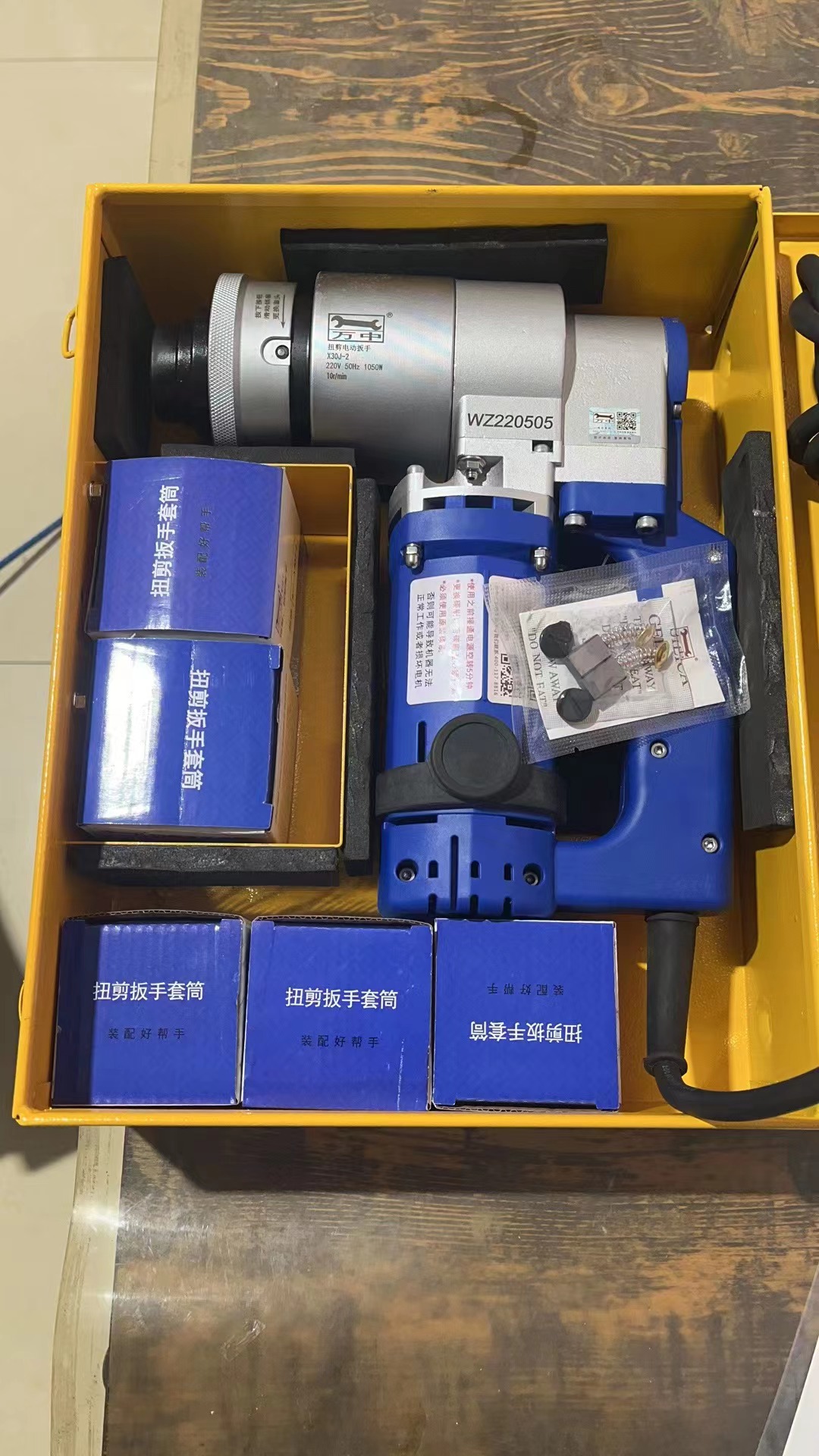

以上就是为大家介绍的有关扭剪扳手的详细的介绍,希望对您有所帮助.如果您有什么疑问的话,欢迎联系我们.我们将以的态度,为您提供服务
