扭剪扳手配件可以通用吗？

Can the accessories of torsion and shear wrench be used in general?

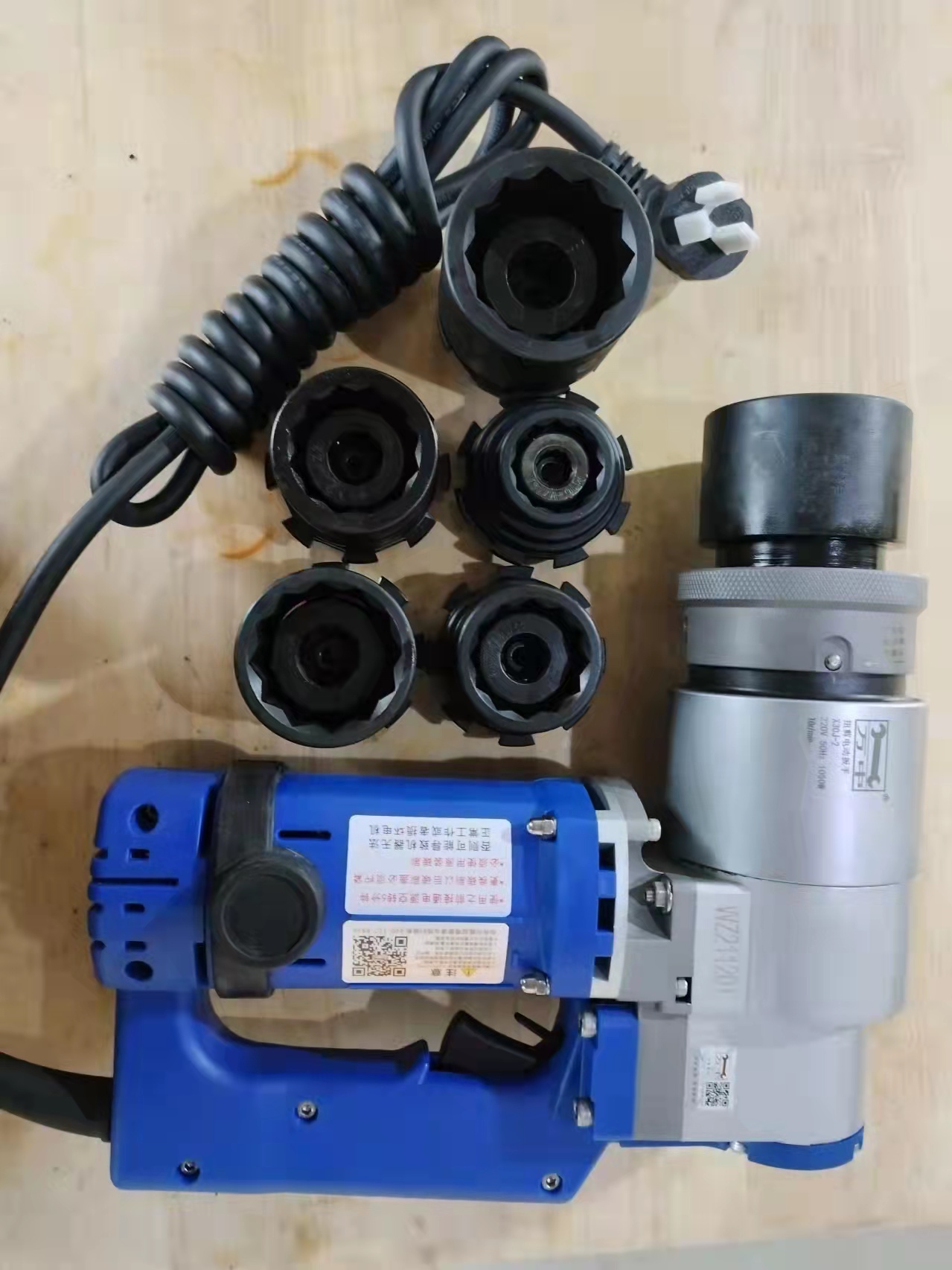

扭剪扳手配件一般都不可以勇用的，扳手的型号相同，但是里面的构造是不同的，另外扭剪扳手的套筒27#  34#  36#  41#套筒型号相同，但是样式也不相同，所以即使套筒型号相同，也是不可以通用的，还需要找原厂家购买配件和套筒。

Generally, the accessories of torsion and shear wrenches can not be used bravely. The models of wrenches are the same, but the structures inside are different. In addition, the socket 27# 34# 36# 41# sleeve models of torsion and shear wrenches are the same, but the styles are also different. Therefore, even if the socket models are the same, they can not be used in general. You need to find the original manufacturer to buy accessories and sleeves.

预置式扭力扳手的使用方法如下：

The use method of preset torque wrench is as follows:

1、按所需定力数值，选择相应的并经校验合格的定扭矩扳手，不准使用没有经过校验的定扭力扳手。

1. According to the required constant torque value, select the corresponding constant torque wrench that has passed the verification. It is not allowed to use the constant torque wrench that has not been verified.

2、要用平衡、缓慢的力扭转扳手，不能急扭，手握住定扭力扳手手柄中间点，垂直于扳手线拉动手柄，直到达到所要求的力矩为止，不允许随意手握根部和端点。

2. A balanced and slow torque wrench shall be used instead of quick torque. Hold the middle point of the handle of the constant torque wrench and pull the handle perpendicular to the center line of the wrench until the required torque is reached. It is not allowed to hold the root and end points at will.

3、不要施加大于定扭力扳手额定值的扭矩，不准用定扭力扳手拆卸螺栓或螺母，定扭力扳手只能顺时针转动。

3. Do not apply torque greater than the rated value of the constant torque wrench. Do not use the constant torque wrench to remove bolts or nuts. The constant torque wrench can only rotate clockwise.

4、用定扭力扳手拧紧螺栓时，应尽可能不使用转接器，非用不可时，必须遵守下列要求：转接器有各种不同形状时，可合理选用；为减少拧紧力矩误差，转接器长度应小于定扭力扳手长度；连接转接器时，其线应和扳手线成一条直线，若需要也可使用轴线偏移的转接器，但不超过15°角。

4. When tightening the bolts with a constant torque wrench, the adapter shall not be used as far as possible. When it is necessary to use it, the following requirements must be observed: when the adapter has various shapes, it can be reasonably selected; In order to reduce the error of tightening torque, the length of adapter shall be less than that of constant torque wrench; When connecting the adapter, its center line shall be in line with the center line of the wrench. If necessary, the adapter with axis offset can also be used, but the maximum angle shall not exceed 15 °.

5、不允许将定扭力扳手当做普通扳手使用，如用来拧松螺母或螺栓等。

5. It is not allowed to use the constant torque wrench as an ordinary wrench, such as to loosen nuts or bolts.

6、右扭矩定扭力扳手不能左旋，而左扭矩定扭力扳手也不能右旋。

6. The right torque constant torque wrench cannot turn left, and the left torque constant torque wrench cannot turn right.

7、不能用镀铬的定扭力扳手和转接扳手接触钛及合金制的螺栓或产品结构。

7. Do not use chrome plated constant torque wrench and adapter wrench to contact titanium and alloy bolts or product structure.

8、定扭力扳手施加的扭矩不允许超过定扭力扳手的额定扭矩值。

8. The torque applied by the constant torque wrench shall not exceed the rated torque value of the constant torque wrench.
