扭剪型高强螺栓专用扳手
Special wrench for torsion shear high strength bolt
用高强度钢制造的，或者需要施以较大预紧力的螺栓，皆可称为高强度螺栓，高强螺栓多用于桥梁、钢轨、高压及高压设备的连接。高强度螺栓具有施工简单，受力性能好、可拆换、耐疲劳，以及在洞里荷载作用下不致于松动等优点，是很有发展前途的连接方法。
Bolts made of high-strength steel or requiring large preload can be called high-strength bolts. High strength bolts are mostly used for the connection of bridges, rails, high-pressure and high-pressure equipment. High strength bolt has the advantages of simple construction, good mechanical performance, detachable and replaceable, fatigue resistance, and no loosening under the load in the hole. It is a promising connection method.
高强螺栓有扭剪性高强螺栓和大六角型高强螺栓之分，且紧固要求较高，因此，需使用专门的电动工具。
High strength bolts can be divided into torsional shear high-strength bolts and large hexagon high-strength bolts, and the fastening requirements are high. Therefore, special electric tools need to be used.

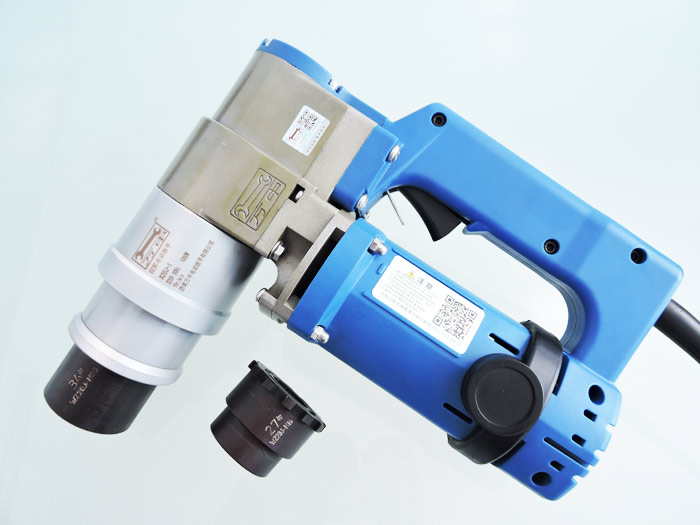

紧固扭剪型高强螺栓需使用扭剪型必威西汉姆联官网g1线路，推荐万中电动扭剪扳手，万中电动扭剪扳手专门用于紧固高强度扭剪螺栓，并且在紧固完成后将剪断的梅花头保留在套筒内部不掉落，随后扣动扳机将梅花头弹出
The torsional shear type electric wrench shall be used to fasten the torsional shear type high-strength bolt. Wanzhong electric torsional shear wrench is recommended. Wanzhong electric torsional shear wrench is specially used to fasten the high-strength torsional shear bolt, and the cut plum blossom head shall be kept inside the sleeve after fastening, and then the trigger shall be pulled to eject the plum blossom head
万中电动扭剪扳手特点：
Wanzhong electric torsion shear wrench features:
体积更小、重量更轻、动力更强，显著减少作业强度，提高工作效率，
Smaller size, lighter weight and stronger power, significantly reduce operation intensity and improve work efficiency,
万中电动扭剪扳手X24J-3参数：
Wanzhong electric torsional shear wrench x24j-3 parameters:
频率：50Hz
Frequency: 50Hz
电压：220V
Voltage: 220V
扭矩：1250N.m
Torque: 1250n m
转速：10rpm
Speed: 10rpm
保护等级：双绝缘
Protection class: double insulation
适用螺栓：M16 M20 M22 M24
Applicable bolt: M16 M20 M22 M24
以上就是为大家介绍的有关
扭剪扳手厂家的详细介绍,希望对您有所帮助.如果您有什么疑问的话,欢迎联系我们.我们将以的态度,为您提供服务
The above is a detailed introduction to the manufacturers of torsional shear wrenches. I hope it will be helpful to you If you have any questions, please contact us We will provide you with professional service
