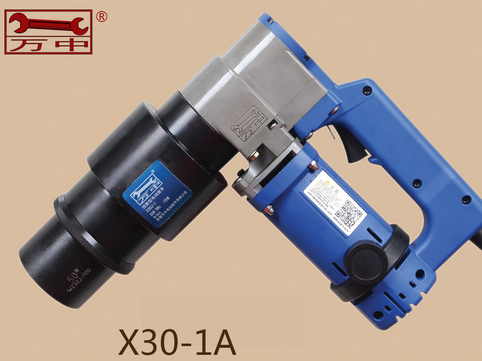

直柄电动扭矩扳手螺栓的拧紧操作
Tightening operation of straight handle electric torque wrench bolt
1、装上反力支架，并紧固螺钉。开动主机，使方头销孔与反力支架孔相对应，然后装入扳手套筒，插上销钉，并用橡胶圈固定。
1. Install the reaction support and tighten the screws. Start the main engine to make the square pin hole correspond to the counterforce bracket hole, then install the wrench socket, insert the pin and fix it with rubber ring.
2、将控制仪的扭矩旋钮调到所需扭矩值，将主机正反开关拨到正转位置，把扳手套筒套在螺纹连接件的六方上。
2. Adjust the torque knob of the controller to the required torque value, turn the forward and reverse switch of the main engine to the forward position, and put the wrench socket on the hexagon of the threaded connector.
3、按下电源开关，扳手启动。当反力支架力臂靠牢支架时（支点可以是邻近的一只螺栓或其他可作支点的位置）螺栓开始拧紧。当螺栓扭矩达到预定扭矩时，扳手自动停止，紧固完成，松开电源开关，进行下一只螺栓的拧紧工作。
3. Press the power switch and the wrench starts. When the arm of the reaction support is firmly against the support (the fulcrum can be an adjacent bolt or other position that can be used as a fulcrum), the bolt begins to tighten. When the bolt torque reaches the predetermined torque, the wrench will stop automatically, the tightening is completed, the power switch will be loosened, and the next bolt will be tightened.
4、扳手自动停止后，靠反力支架的弹性形变力，使支架力臂自动脱离支点，取下扳手。如力臂不能脱离支点时，可拨动正反开关，点动电源开关扳手即可取下。
4. After the spanner stops automatically, the force arm of the support is automatically separated from the fulcrum by the elastic deformation force of the reaction support, and the spanner is removed. If the force arm can not be separated from the fulcrum, the positive and negative switches can be turned, and the power switch wrench can be turned to remove.

直柄电动扭矩扳手扭矩的选择与调节
Selection and adjustment of torque of straight handle electric torque wrench
1、用户可在50-3500Nm的范围内任意选择相应规格的直柄电动扭矩扳手。
1. Users can choose the electric torque wrench with straight handle in the range of 50-3500nm.
2、控制仪面板上有“扭矩调解旋钮”。刻有0-10个刻度值。细调旋钮的作用是在粗调两档之间进行调节补偿，以提高扭矩控制精度。（见后页）
2. There is "torque adjustment knob" on the control panel. There are 0-10 scale values. The function of fine adjustment knob is to adjust and compensate between two rough adjustment gears, so as to improve the torque control accuracy. (see next page)
3、调节方法：产品出厂时带有扭矩测试数据卡片，供用户标定时参考，用户可根据所需扭矩选择某一刻度值，按拧紧螺栓的操作方法，拧紧螺栓，用测力扳手或其它测力仪器测出螺栓的实际扭矩值，若扭矩相差较小，可用细调加以补偿，若相差较大，可将粗调向上或向下调一档，反复几次即可获得所需扭矩值。
3. Adjustment method: when the product leaves the factory, there is a torque test data card for the user's reference when calibrating. The user can select a scale value according to the required torque, tighten the bolt according to the operation method of tightening the bolt, and measure the actual torque value of the bolt with a force measuring wrench or other force measuring instruments. If the torque difference is small, fine adjustment can be used to compensate, if the difference is large, coarse adjustment can be upward Or downshift one gear and repeat several times to obtain the required torque value.
